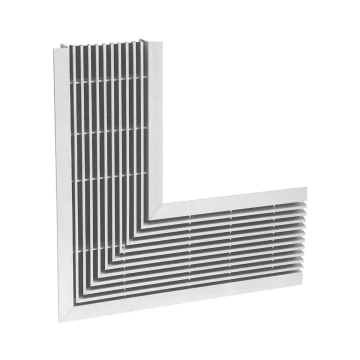

ELF/ELS — Linear Diffusers
- Ceiling, sidewall, sill or floor applications
- Available in 0, 15, or 30 °s and pencil proof bar deflections
- Four mounting styles-standard, hanger bracket, mounting frame and screw holes in margin
- Maximum one-piece length 72", width 24" (1/2" width increments)
- Lengths over 72" made in multiple units with keyway splices to form even continuous lengths
- Bright White or Satin Anodized finish

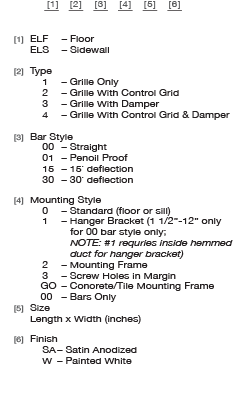

How to Specify
| Model | Material | Damper |
|---|---|---|
| ELF | Extruded Alum | Floor/Sill |
| ELS | Extruded Alum | Ceiling/Sidewall |
Minimum width: 2"
Note: Floor application must be ordered as "ELF." Eight-inch maximum width for constant traffic; 12" maximum width for occasional traffic; maximum length 72".

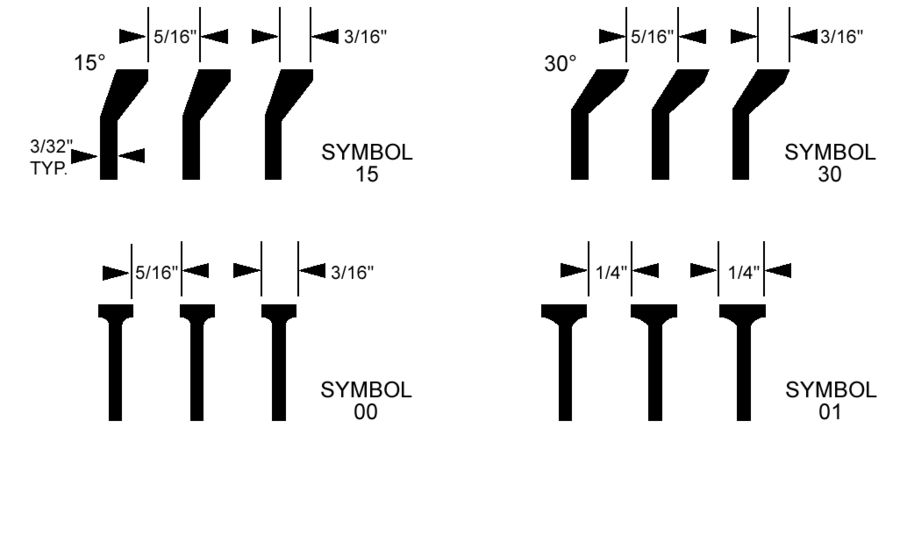

Bar Styles
