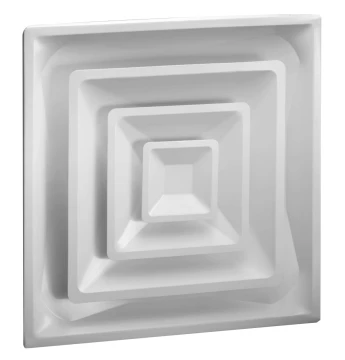

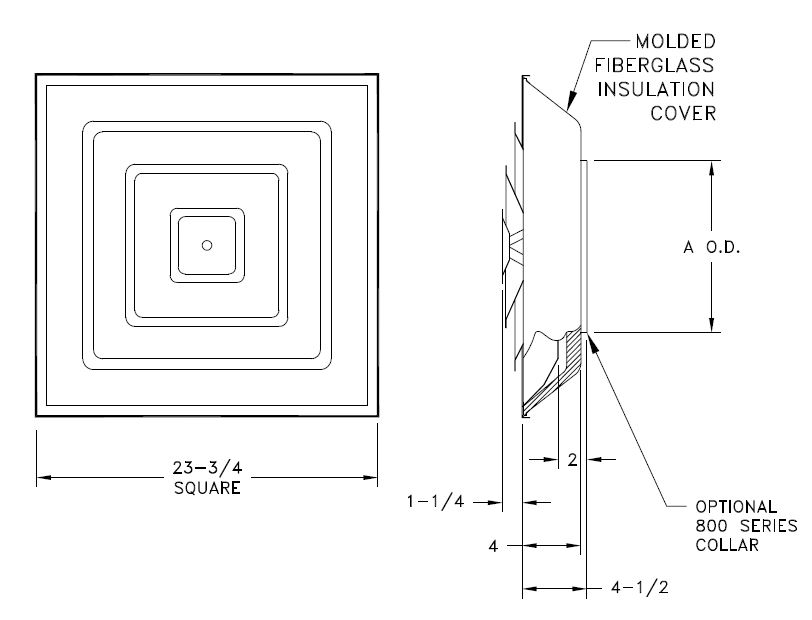

1300U R6 — 3-Cone Face Diffuser

  • Provides high air volume delivery
  • 360° air diffusion
  • Fixed core
  • Formed back panel
  • Insulation prescored to accommodate collar size desired
  • R6 molded fiberglass back use 805RC with 805PP
  • Utilizes butterfly damper (800DO Series) inserted in collar
  • 1302U R6 uses spin-in or tab collar for duct connection
  • Bright White finish
