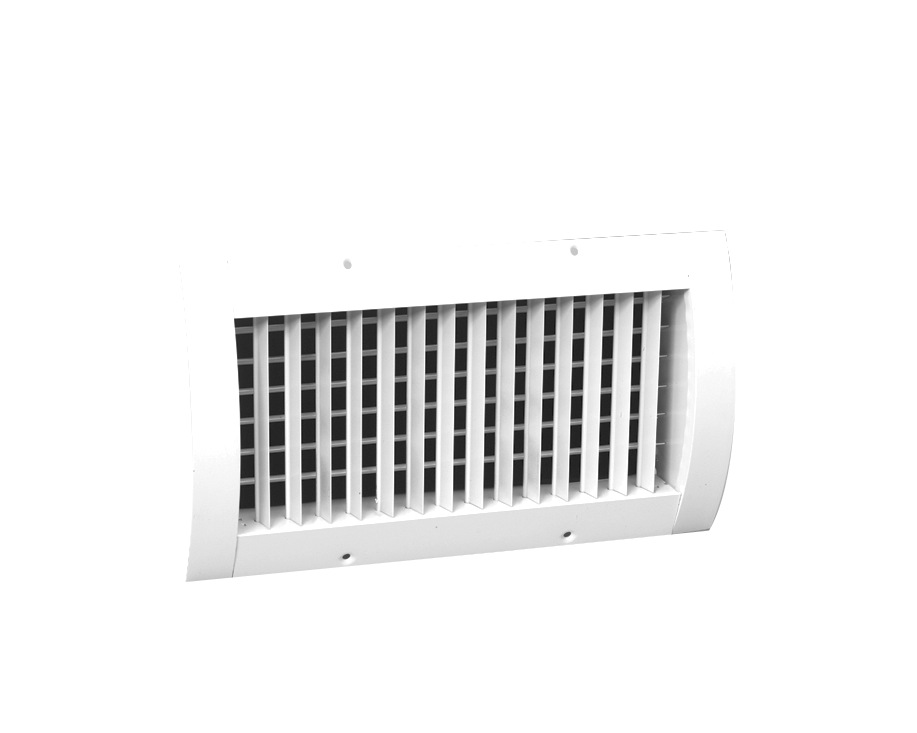

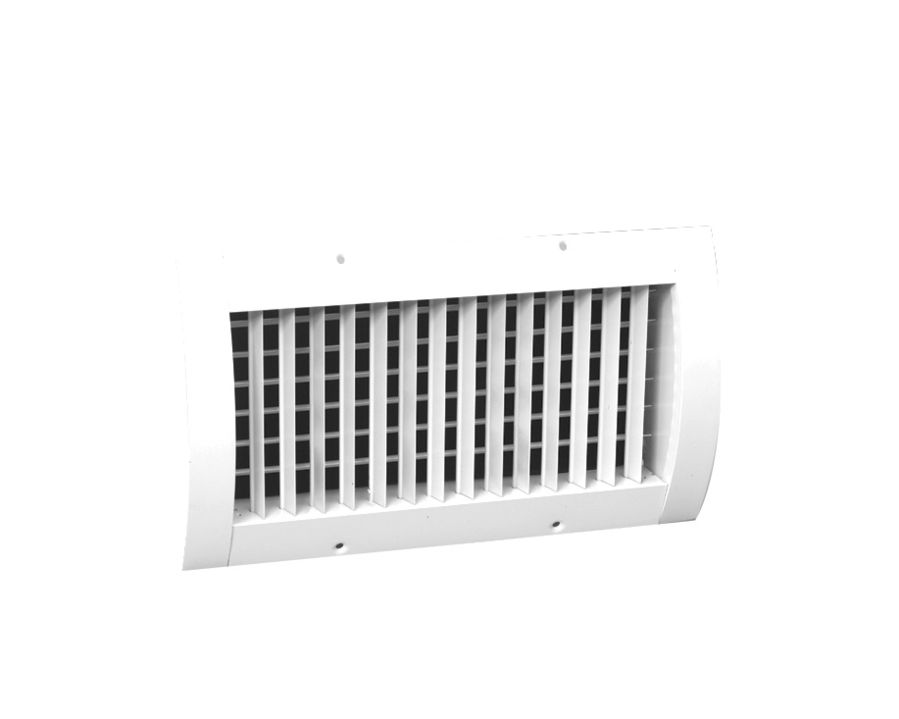

ESDD — Double-Deflection Spiral Diffuser

How to Specify

How To Specify ESDD

ESDD — Double-Deflection Spiral Diffuser

Assets/Details

Submittal Data (50 KB, PDF)
Engineering Data (25 KB, PDF)
  • Two rows of individually-adjustable blades for horizontal and vertical deflection control
  • Optional face adjustable scoop to direct airflow
  • Counter-sunk screw holes
  • Available sizes: 10x3 to 36x12 for 6" to 50" ducts
  • Bright White and Satin Anodized finishes
ModelMaterialAir Scoop
ESDD1Extruded Alumnone
ESDD3Extruded AlumYes

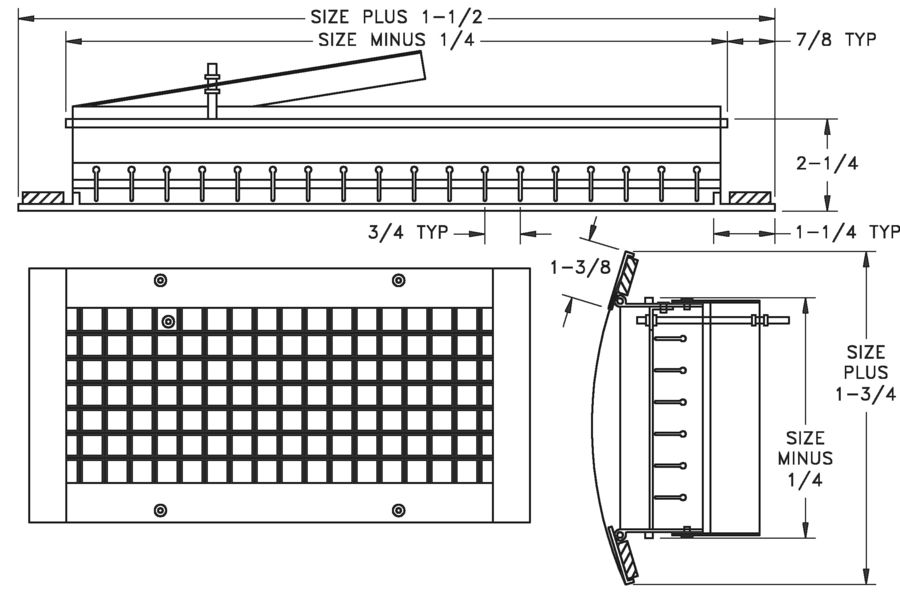

ESDD Little Submittal

Minimum Duct Diameter per listed size

Height
Width101214161820243036
3555555555
4666666666
6888888888
810101010101010
10121212121212
121414141414
