EUSDD — Double-Deflection Universal Spiral Diffuser

How to Specify

How To Specify EUSDD

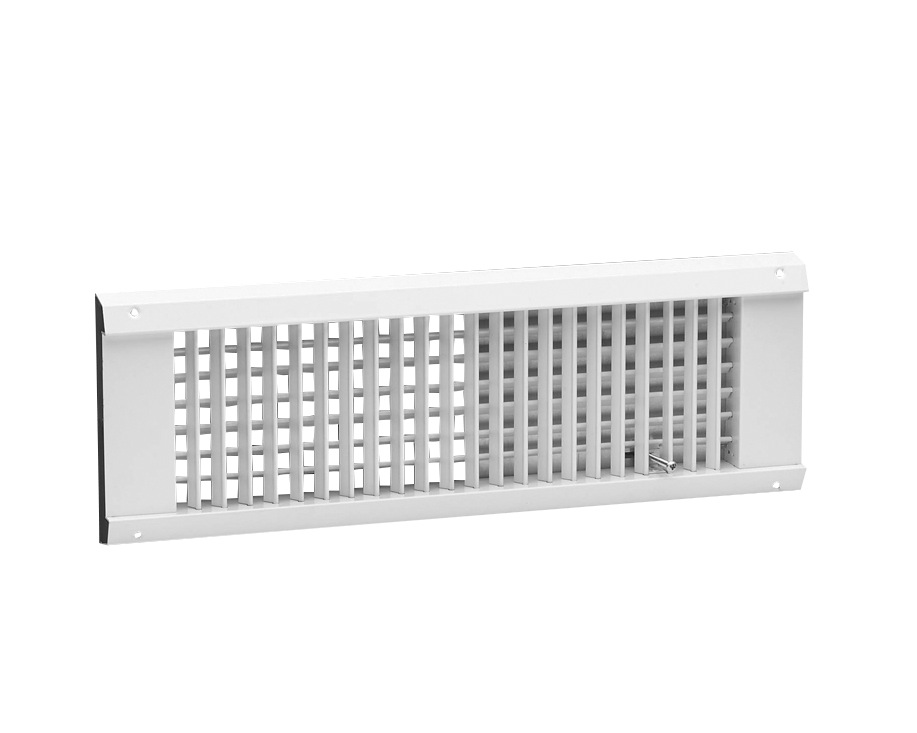

EUSDD — Double-Deflection Universal Spiral Diffuser

Assets/Details

Submittal Data (67 KB, PDF)
Engineering Data (25 KB, PDF)
  • Two rows of individually-adjustable blades for horizontal and vertical air deflection control
  • Optional face adjustable scoop to direct airflow
  • Counter-sunk screw holes
  • Available sizes:  10x3 to 36x12
  • Fits duct sizes 6" on up, based on diffuser height
  • Bright White and Satin Anodized finishes
ModelMaterialAir Scoop
EUSDD1Extruded Alumnone
EUSDD3Extruded AlumYes

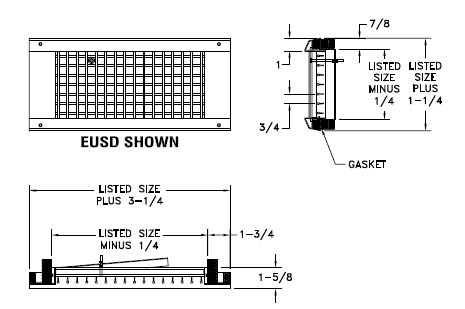

EUSD Little Submittal

Minimum Duct Diameter per listed size

Height
Width101214161820243036
3666666666
4101010101010101010
6121212121212121212
8202020202020202020
1024242424242424
123030303030
