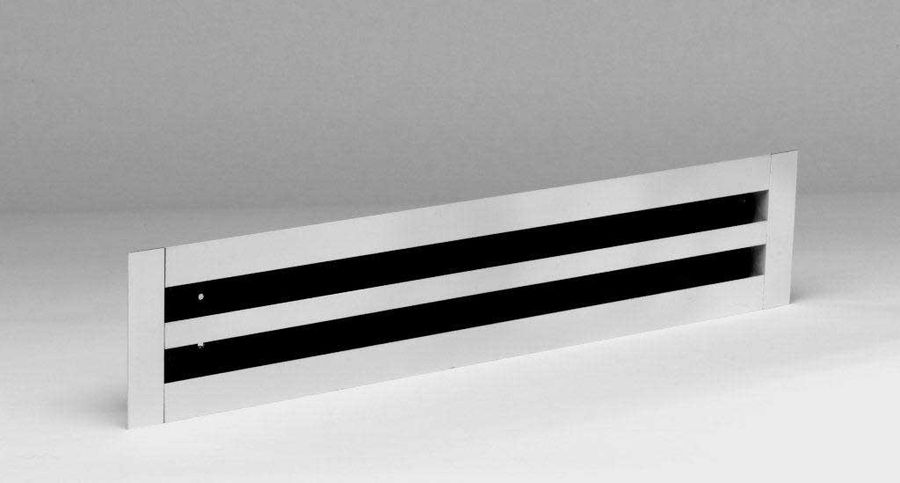

ESCD Series — Slot Diffuser for Ceiling or Sidewall Applications

How to Specify

ESCD [1] [2] [3] [4] [5] [6] [7}

[1] Type:

  • 50 - 1/2" slot
  • 75 - 3/4" slot
  • 10 - 1" slot

[2] Style:

  1. Diffuser Only
  2. Diffuser with pattern controller

[3] Number of Slots:

  • 01-08 slots
  • Note: Use a two-digit number to specify; Example: for two slots, specify "02"

[4] Mounting Style:

  • B0 - T-Bar Lay-in - Diffuser Only
  • E0 - Diffuser Only
  • E1 - Hanger Bracket
  • E2 - Standard Mounting Frame
  • F0 - Screw Holes into Margin

[5] End Caps:

  • E1 - One end
  • E2 - Both ends
  • 00 - None

[6] Length (inches)

  • 12" Minimum
  • 999" Maximum

[7] Finish

  • SA - Satin Anodized
  • W - White

ESCD Series — Slot Diffuser for Ceiling or Sidewall Applications

Assets/Details

Engineering Data (20 KB, PDF)
  • Extruded alumninum construction
  • Three slot types: 50 (1/2" slot), 75 (3/4' slot), 10 (1" slot)
  • One to ten slots wide for air volume of 10-350 cfm per foot
  • Minimum one-piece length 12" (Maximum 72")
  • Lengths over 72' made in multiple units with keyway splices for even continuous lengths. Increments of 1/8". 999" the maximum continuous length.
  • Available as diffuser only, diffuser with damper or pattern controller, and diffuser with damper and pattern controller.

Note: The width dimension is determined by the slot width (type) and the number of slots.

ESCD-Series Style Details



ESCD-Series Style Details

Margin Styles

  1. Style B0
  2. Style E1/E2
  3. Style E0/F0
  4. Mitered Corners

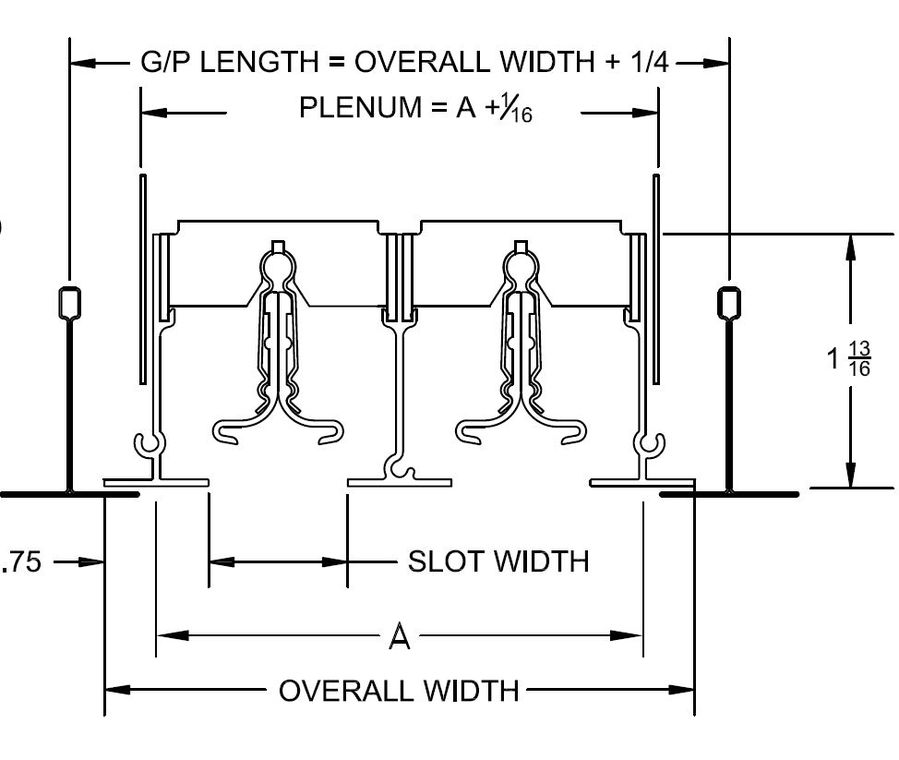

ESCD Style B0 (dimensional)B0 – T-Bar Lay-In Diffuser Only

Duct Width: A + 1/16
Overall Width: A + 7/8

Please see Submittal Drawing for details

T-Bar Application

Order the length shown below

2'x2'2'x4'
with End Caps24in.48in.

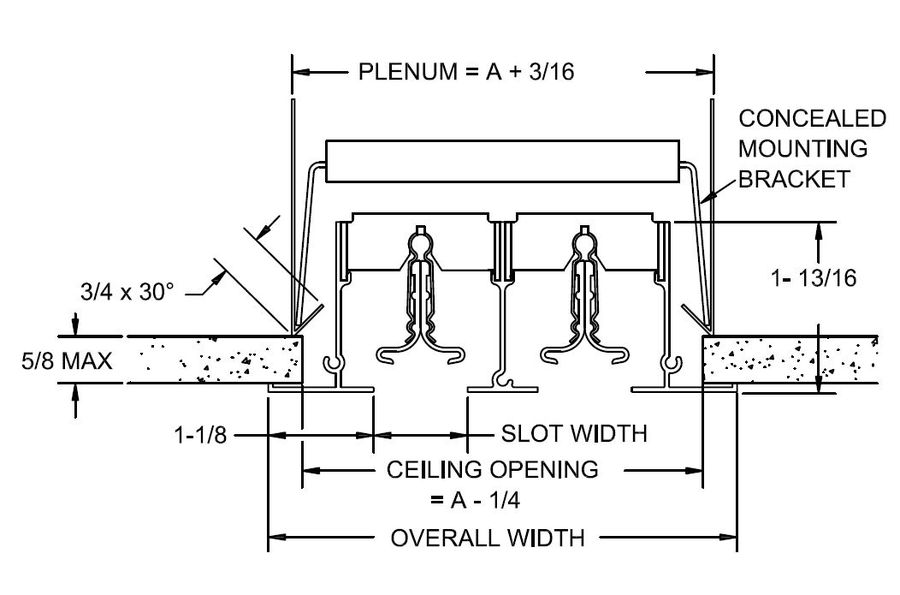

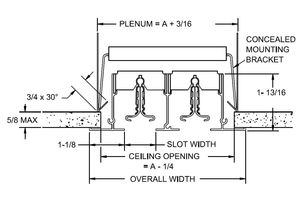

ESCD Series-Style E1 (dimensional) E1 – Hanger Bracket

Overall Width: A + 3/4

Please see Submittal Drawing for details

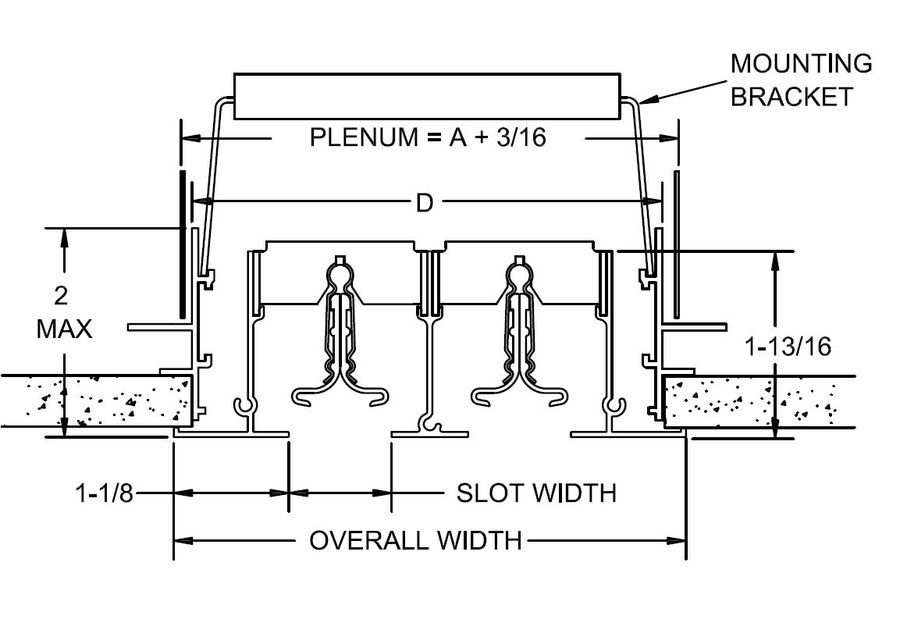

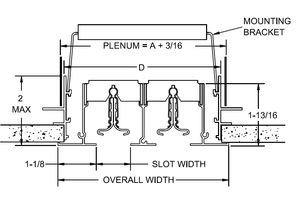

ESCD Series-Style E2 (dimensional) E2 – Mounting Plaster Frame

Overall Width: A + 3/4

Please see Submittal Drawing for details

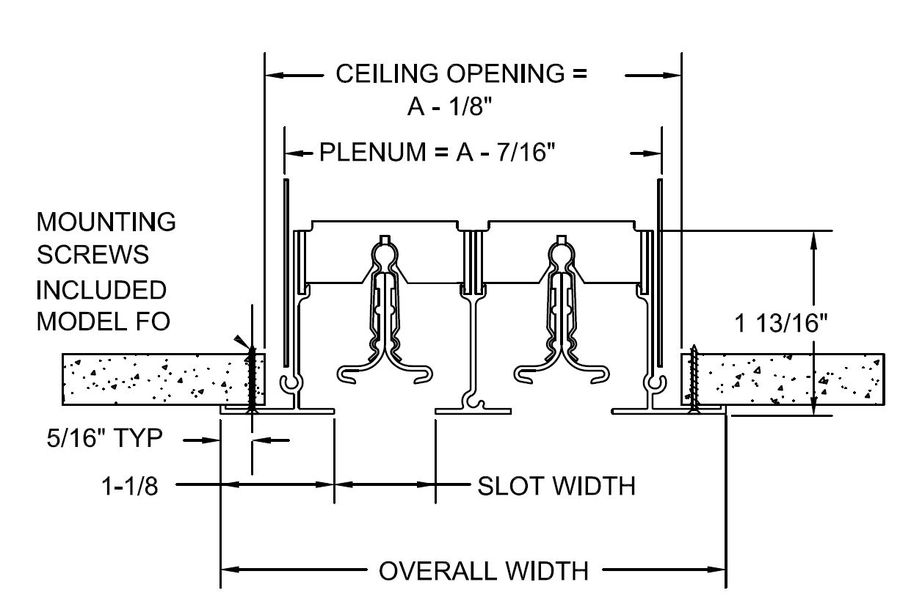

ESCD Series-Style E0 (dimensional) E0 – Diffuser Only

Duct Width: A + 7/16
Overall Width: A + 7/8

Please see Submittal Drawing (88 KB, PDF) for details

ESCD Series-Style E0 (dimensional) F0 – Screw Holes in Margin

Duct Width: A + 7/16
Overall Width: A + 7/8

Please see Submittal Drawing (88 KB, PDF) for details

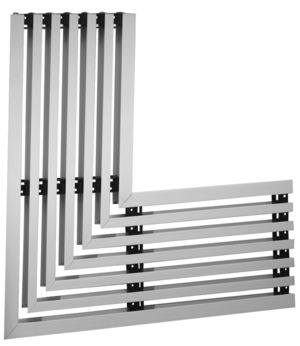

ESCD Series Mitered Corner













  • 90-degree mitered corners are available as factory-fabricated section. Precise factory cutting and assembly reduces field fabrication time and assures proper fit. Corner sections are furnished and blanked off. Corner sections butt to adjacent straight sections, which are spliced together with aligning keys.
  • Mitered corners are furnished in Mouting Style E2. When viewed from the room side, the mitered corner section appears identical to the butting straight sections.
  • Plaster frame mitered corners can be specified with the outlet mitered corner.

Note: DRAWING REQUIRED when ordering linear slot diffusers with mitered corners.
