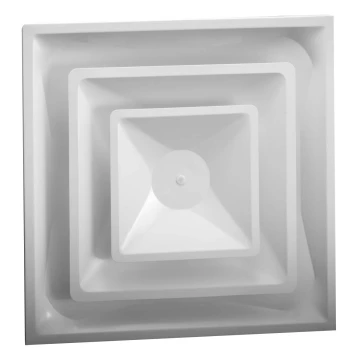

1302 Series — 2-Cone Face Diffuser

1302 Series — 2-Cone Face Diffuser

Assets/Details

Submittal Data — R6 (41 KB, PDF)
Submittal Data (40 KB, PDF)
  • Provides high air volume delivery
  • 360° air diffusion
  • Two-cone fixed core
  • Fixed collar 6" to 14"
  • For 1302U R6, use 805RC or 800TC collar
  • Unique 2" high collar permits easy flex connections
  • Utilizes butterfly damper (800DO Series) inserted in collar; order separately
  • Damper adjustable through face
  • Formed back panel
  • 1302 INS, 1302 INSL R6, 1302U R6 features insulated back
  • Bright White finish

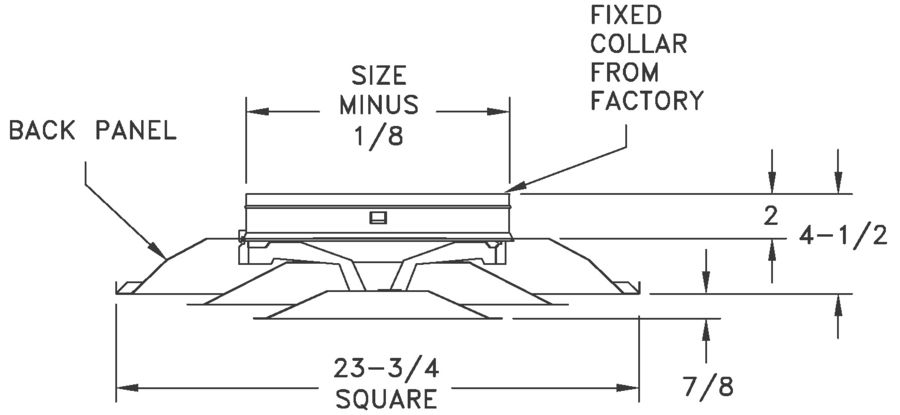

1302 and 1303 Little Submittal 11302 and 1303 Little Submittal 2

ModelMaterialDamper
1302Steelnone
A1302Aluminumnone
1302 INSSteelnone
1302 INSL R6Steelnone
1302U R6Steelnone
